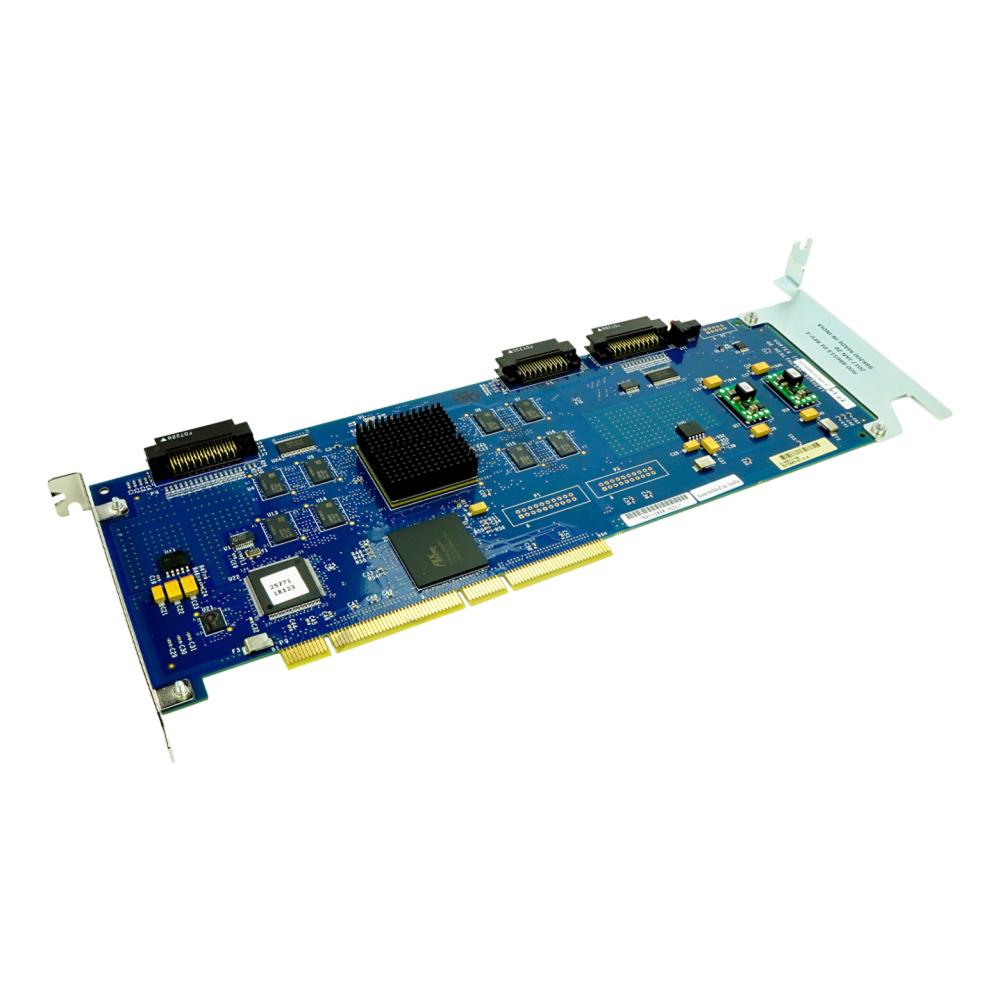

PC BOARD ASM VORTEX IMAGE PROCESSOR ROHS
5273045-01
00-885796-01 5273045-01R 5273045FS 5273045R 99-885796-01
OEC Mobile C-Arms
9900 C-Arm
GE Healthcare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Product Overview

The Vortex Image Processor Board (VRTX-IP) is comprised of various components including resistors, capacitors, voltage regulator, semiconductor diode, PLDs, flash memories, SDRAM, CPLDs, tranceivers, protection fuses, EMI supression filters, IC's and LEDs. The boards' power is taken from 5 volt power pins and uses less than 15 watts. The VRTX-IP is compliant with the long PCI bus card. The circuit board is made of FR-4, a composite material that consists of glass fabric and electrical grade epoxy resin. The material is extremely strong and stiff, has a low coefficient of thermal expansion and outstanding electrical properties. FR-4 is widely used to help insulate electronic applications. This Vortex Image Processor (VRTX-IP) board can be used with the workstation assembly of OEC 9900 Elite systems.

Compatible Products

OEC 9900 Elite 12ΓÇ¥ II C-arm

OEC 9900 Elite 12ΓÇ¥ II C-arm

OEC 9900 Elite 9ΓÇ¥ II C-arm

OEC 9900 Elite 9ΓÇ¥ II C-arm

Equivalent Part :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
00-885796-01
  • Printed Circuit Board Assembly, Vortex Image Process
5273045-01R
  • Vortex Image Processor PC Board Reworked Part - RoHS
5273045FS PC Board Assembly Vortex Image Processor RoHS
5273045R REWORKED SERVICE PART, PC BOARD ASM, VORTEX IMAGE PROCESSOR,
99-885796-01
  • Repair Printed Circuit Board (PCB) Assembly Vortex I
