Front Sensor Kit for Spot Film Device
| 46-316202G3 | |
| 46-316202G1 | |
| X-Ray | |
| AMX4/AMX4+ | |
| GE HealthCare | |
Add to Wish List
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Product Overview

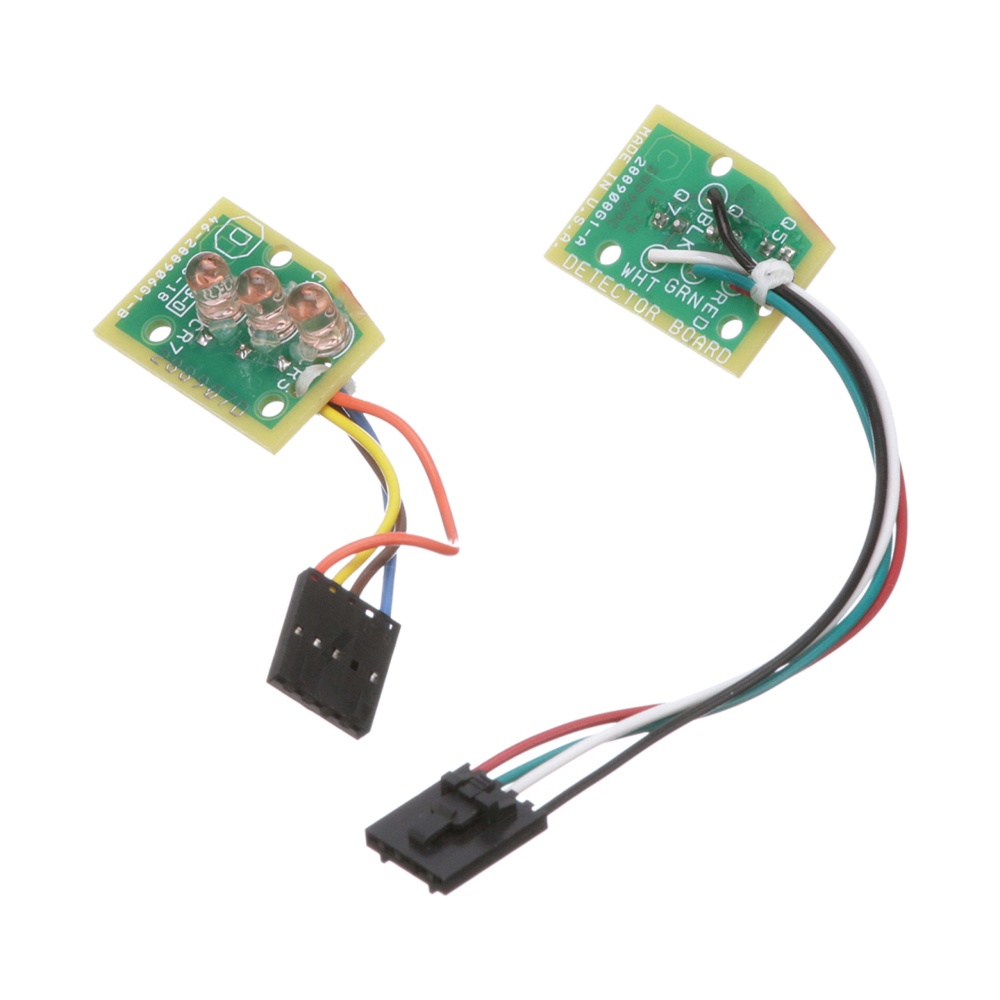

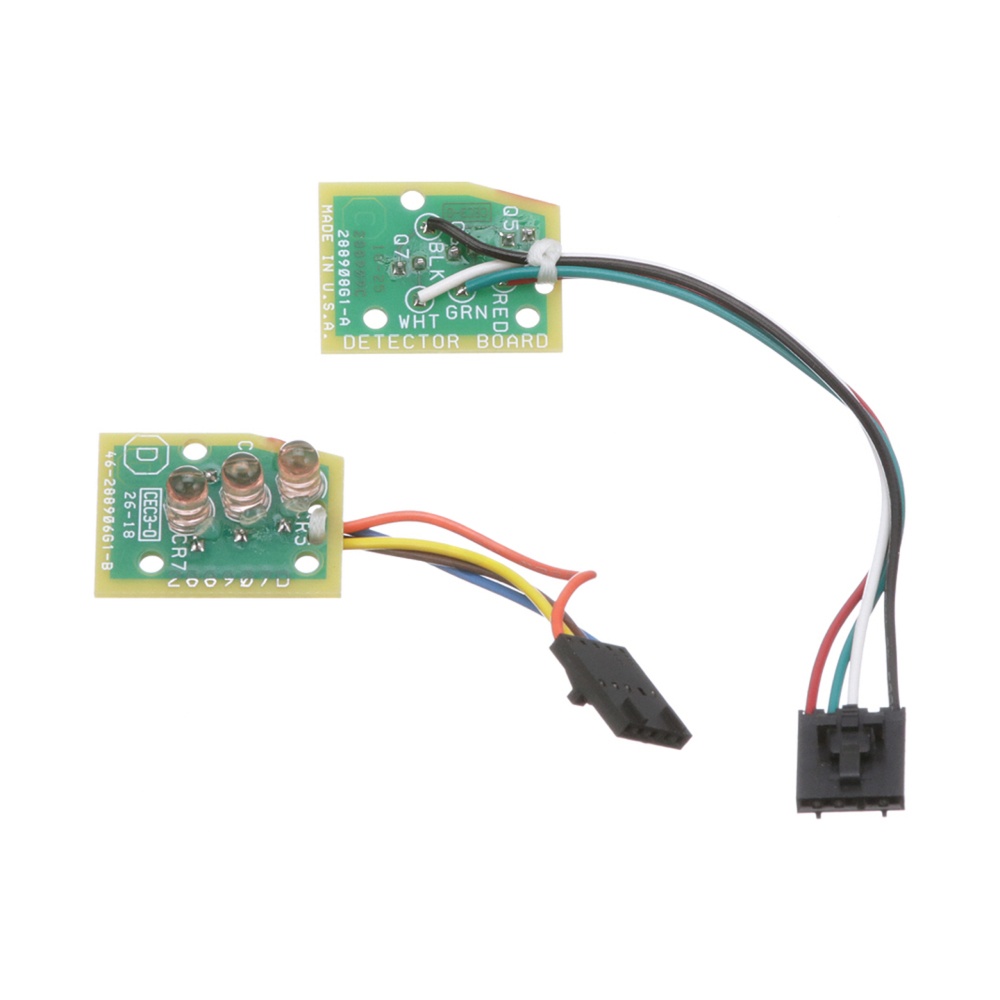

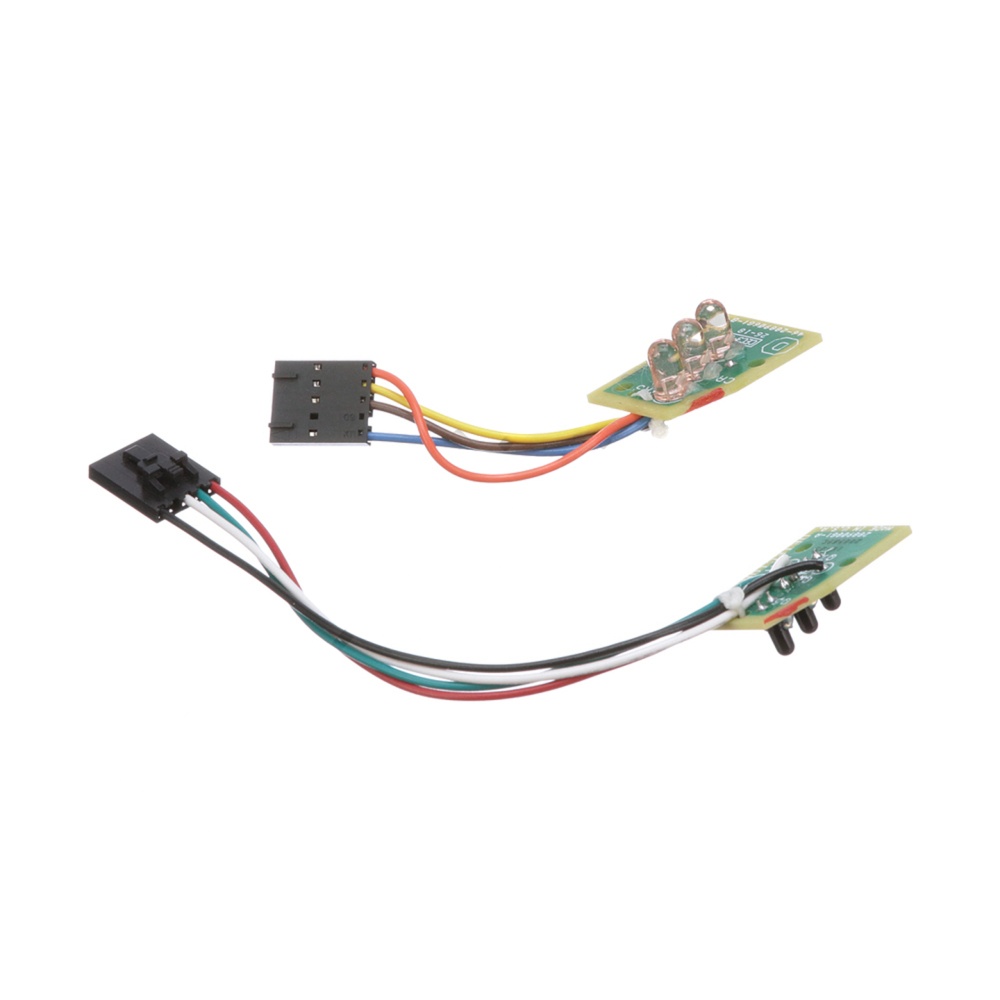

An infrared sensor detects if the cassettes or human hands are in the loading area of the machine. This sensor consists of 3x infrared emitting diodes mounted on a board and 3x infrared detecting transistors mounted on another board. The emitting diode is aimed at the detecting transistors and, if nothing is blocking the infrared beam, the transistor will saturate. The devices used on the boards have a very small half angle. The printed circuit boards of the emitter and detector come with 3 drilled holes for mounting on the assembly. The detector and emitter module come with 5 position connectors. The assembly is compatible with GE's 8835 Spot Film Device (SFD) systems.
Equivalent Item(s):
Below is more information on the equivalent item(s). Items without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent Item(s) | Item Details |
|---|---|
| 46-316202G1 | CONSISTS OF (1) EMITTER BOARD |
