Cable Lift Up 9800
00-879031-01
OEC Mobile C-Arms
9800 C-Arm
GE Healthcare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Product Overview

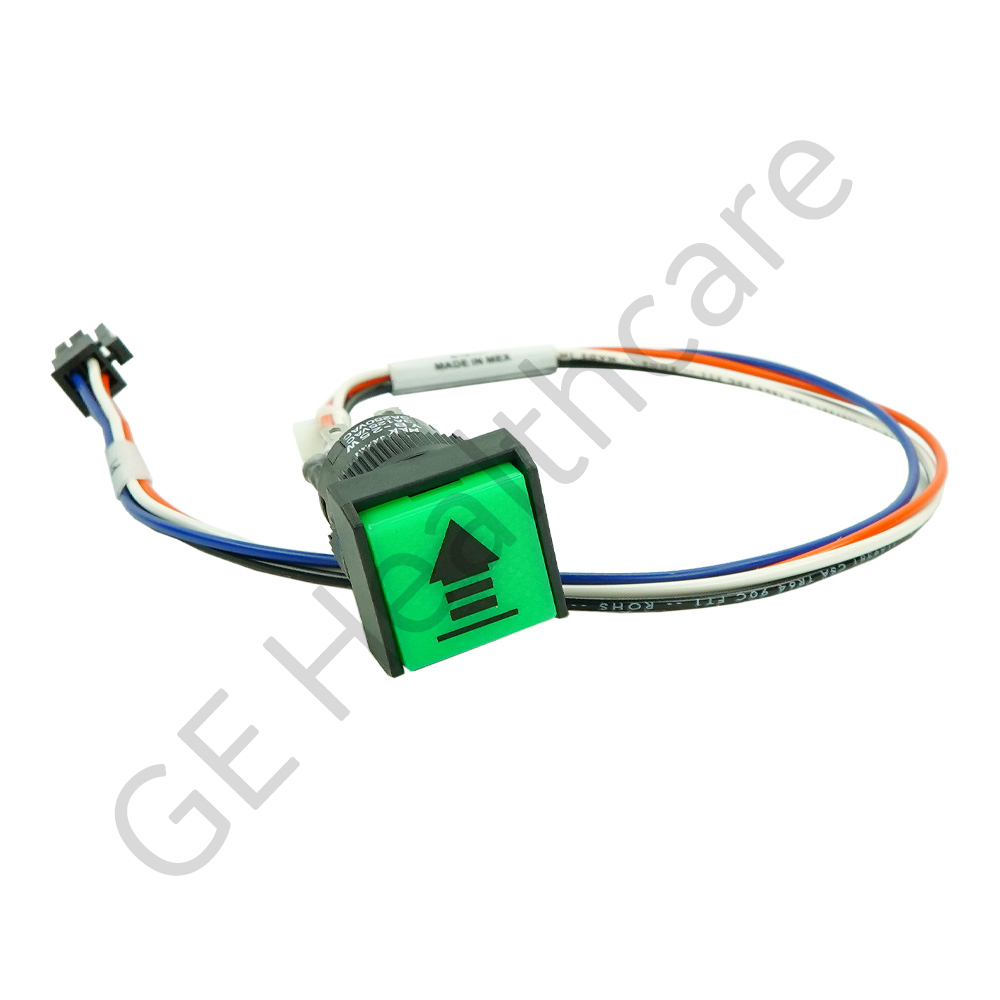

This Cable Lift Up Assembly is a cable assembly that includes 4 hook-up wires of AWG 24, a Double Pole Double Throw (DPDT) push button switch and a 4 position micro-fit female connector. One end of the wire is soldered to the switch and soldered pins are covered with heat shrink tubes to provide good insulation. The other end of the wires are crimped with connector's socket. The switch in the assembly has a current capacity of 3 Amp and can operate from -25° C to +50° C with no icing or condensation. The switch controls and adjusts the upward lift motion and position. The wires are insulated with high quality Poly-Vinyl Chloride (PVC) and provide good chemical resistance and high strength. This assembly can be used with GE's OEC 9800, OEC 9900 Elite and OEC 8800 systems.

Compatible Products

OEC 9800 12ΓÇ¥ II C-arm

OEC 9800 12ΓÇ¥ II C-arm

OEC 9900 Elite 12ΓÇ¥ II C-arm

OEC 9900 Elite 12ΓÇ¥ II C-arm

OEC 8800 C-arm

OEC 8800 C-arm

OEC 9800 9ΓÇ¥ II C-arm

OEC 9800 9ΓÇ¥ II C-arm

OEC 9900 Elite 9ΓÇ¥ II C-arm

OEC 9900 Elite 9ΓÇ¥ II C-arm
