Product Overview

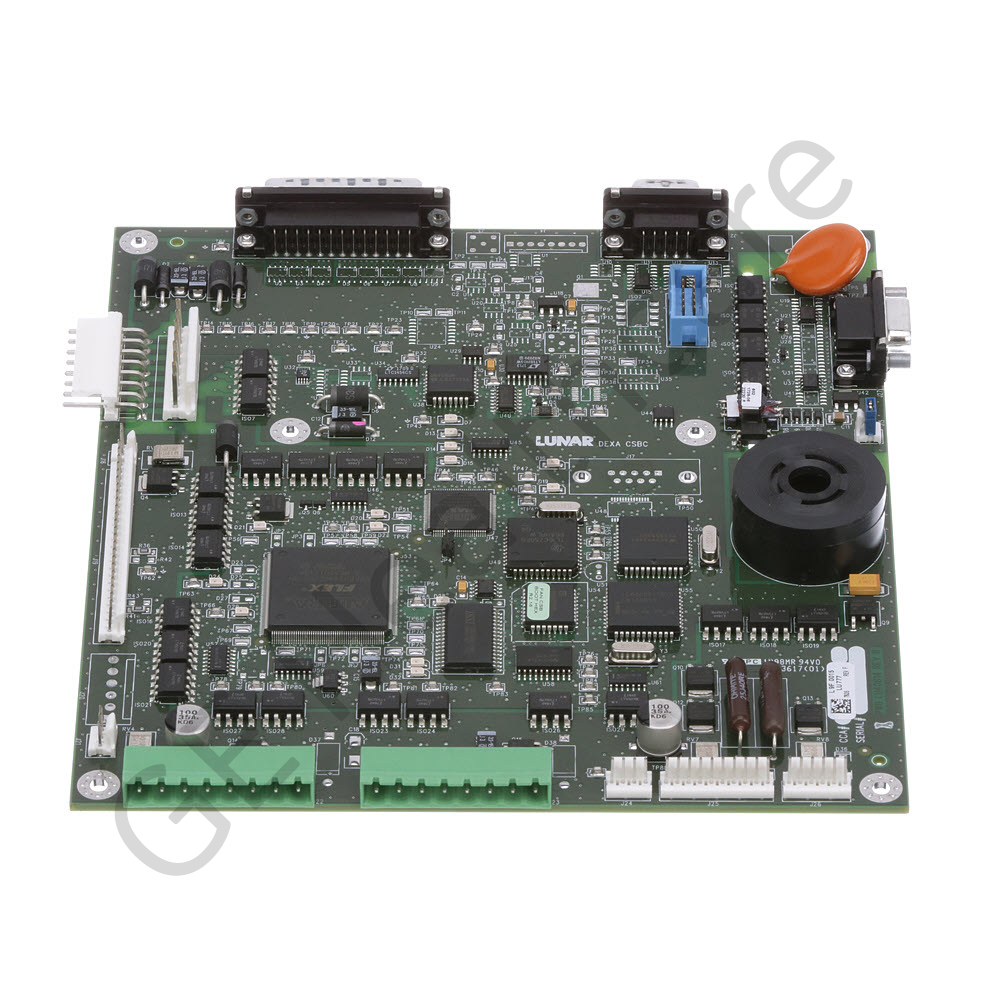

This CSBC (Combined Single Board Controller) for Prodigy P3-P7 is a part of the DEXA series bone densitometers. This circuit card assembly is an embedded controller of the DEXA systems. It is responsible for all detector , Xray, motion, and support operation. It runs as a slave to a host PC. The CSBC employs an Intel 80C251 micro-controller as its processor. This processor provides 1K of onboard RAM and is clocked at 16 MHz using a crystal. The CSBC contains a single 128K x 8 bit SRAM which provides read/write memory. The CSBC printed wiring board (PWB) is an eight layer rectangular board measuring 7.400” x 8.100”. The board thickness is specified as 0.093” (standard is 0.062”) to increase stiffness and stability for cable insertion. The PWB is mounted via four mounting holes located 1/4” from each corner and 2 additional interior mounting holes. The components are primarily surface mount, with board connectors, headers and a few single-style ICs being the only exceptions. Through-hole connectors were used for better stability and ruggedness for secure cable and board connections. This board can be used with GE's Prodigy series bone densitometers.
Equivalent Part :
Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.
Equivalent part | Part Details |
---|---|
LNR7635 | LNR7635 |
