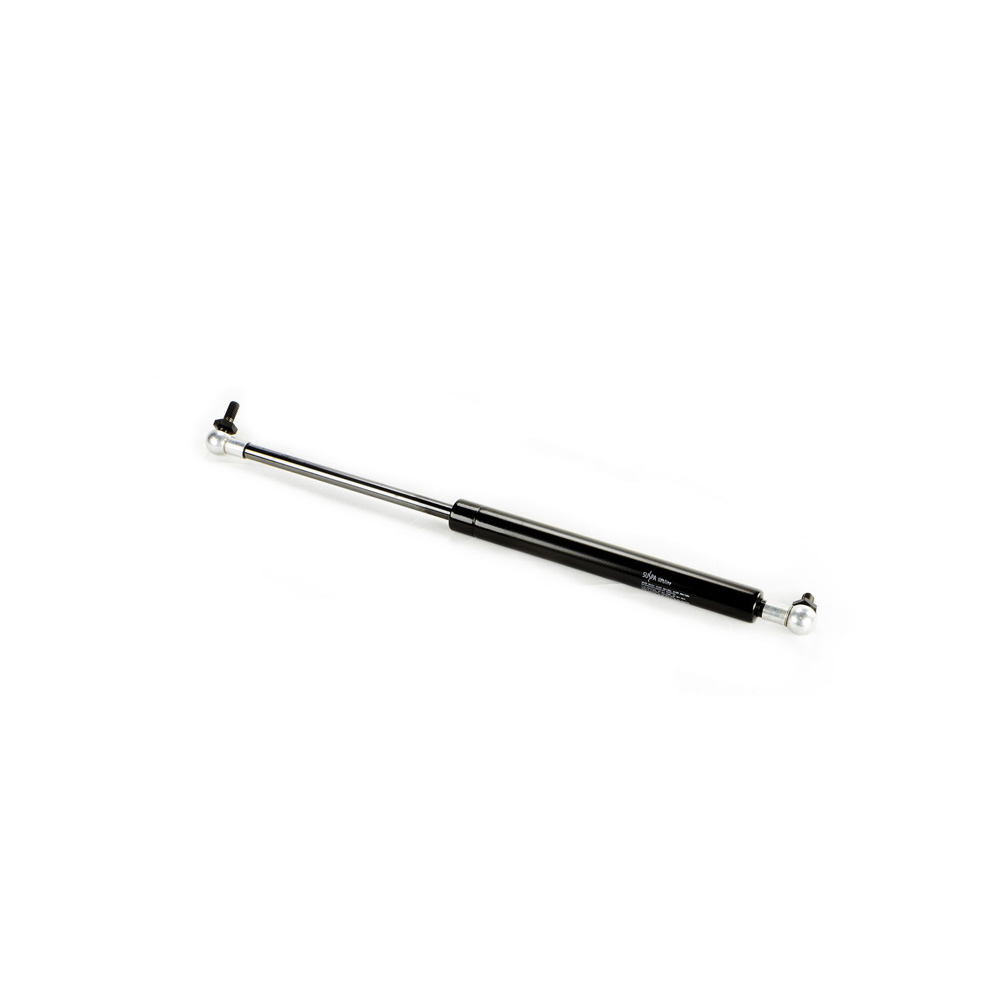

Gas Spring with Ball Joint 2000 N
| HG000716692 | |
| HG000725054 | |
| Molecular Imaging and Nuclear Medicine | |
| Other Molecular Imaging and Nuclear Medicine | |
| GE HealthCare | |
Add to Wish List
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Product Overview
The Gas Spring with Ball Joint 2000 N can be defined as hydro-pneumatic energy storage elements. Nitrogen gas and oil are used for providing compressible and damping medium. The gas spring unit consists of a piston rod, sealed cylinder and sealer. The nitrogen gas and oil are filled in a sealed cylinder and the piston rod is attached with the cylinder. This unit works in a two-principle movement compression stroke and extension stroke. In compression stroke the piston rod is pushed down the fluid and gas in the cylinder gets compressed and the energy gets stored. When the pressure on the rod gets released the piston gets back to its original position due to the energy released in the compressed fluid. The two-end of the gas spring consists of a ball joint for special purpose. The sealers are made of high-quality material to withstand the pressure. This part is widely used in NM Ventri, NM Infinia Hawkeye, NM Infinia Hawkeye 4, NM Xeleris WS 3.1, NM Discovery NM/CT 570C, NM Infinia II, NM Xeleris WS 3.0, NM Discovery NM/CT 670, NM Xeleris WS 1.1, NM Millennium VG, NM Millennium Square Acquisition, NM Infinia Hawkeye 4, PET Xeleris WS 1.1, NM Xeleris WS 3.1 and many other machines.
Equivalent Item(s):
Below is more information on the equivalent item(s). Items without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent Item(s) | Item Details |
|---|---|
| HG000725054 | GAS SPRING WITH BALL JOINT 2000N |
