XYZ Switch Assembly Black Steel
GA200270-2
Ultrasound
LOGIQ E9
GE Healthcare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.


Product Overview

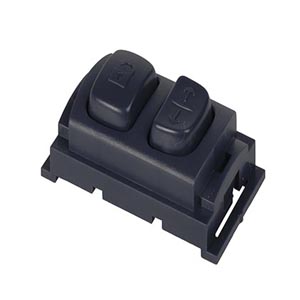

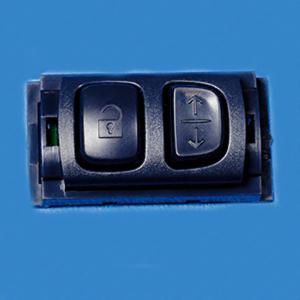

The XYZ Switch Assembly is used in the ultrasound machines, Computed Tomography (CT) machines and in a few other Digital Imaging (DI) devices. It is one of the parts that comes in the High Level Assembly (HLA) of this medical equipment. It is an assembly that consists of an XY button which is used for braking purposes, a Z button which is used for the lifting mechanism, a bracket on which the buttons are placed and set into the panel and a board that comes behind the switch buttons and is used for the up-down movement. All three switches will function in closed circuit when pushed and in open circuit when released. The closed circuit will be less than 3 ohms. All these parts are made up of a high quality material which has good mechanical properties and can withstand a wide range of temperatures and pressures. It is widely being used in machines like Vivid E95 / E9 / E9 EXPERT / 7 / E90 / S70, ENTROPY Module, Signa HDxt 1.5T, Optima CT660 64-Slice, Voluson S6 / P8 / E6 / E8, LOGIQ E9 / S7 EXPERT / E / E PREMIUM, ABUS Invenia GENII and many other medical diagnostic devices.

Compatible Products

LOGIQ E9

LOGIQ E9

The LOGIQ* E9 is a versatile general imaging system that helps meet a wide variety of general imaging needs. As healthcare evolves and ultrasound exams become more in demand, you need the ability to adapt to the changing environment with an ultrasound system that gives you flexibility, ease of use, speed and reliability.

The LOGIQ E9 can help you:

Deliver extraordinary image quality on a broad spectrum of patient body types.
Visualize blood flow without the limitations of Doppler
Enhance your workflow.
Integrate real-time ultrasound with previously acquired CT, MR, PET, or ultrasound images.
Visually track your position during a scan.
