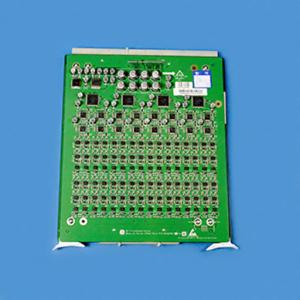

BT11 DTRX64 II Assembly
5399198 | |
5252321 5252321-2 | |
Ultrasound | |
LOGIQ P6 | |
GE HealthCare | |
Enter your approval number and submit to add item(s) to cart.
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Select your approver's name and submit to add item(s) to your cart
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Product Overview
This DTRX64 II Assembly is a beam-forming part that's main function is Analog and Digital Signal Processing. It has 64 channels of analog and digital signal conditioning circuits that transmit a high voltage pulse, and receive and amplify the echo-backed small signals from a transducer through an Interface board. Each channel consists of a low-noise and active input termination pre-amplifier (LNA), voltage controlled amplifier (VGA), Low pass filter (AAF) and an analog to digital converter (ADC) in a receiver path, and a dual-TX-driver and TR switch in a transmiter path. A Transmit/Receiver Switch (T/R Switch) is a diode configuration that allows the pulser to drive the transducer, and protects the receiver preamp from large negative and positive voltages produced by the transmitter. The assembly includes MLB64 II and DTD64 circuit boards which are interconnected. This assembly can be used with Logiq P6 Ultrasound systems.
Equivalent Part
Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.
Equivalent part | Part Details |
---|---|
5252321 | LOGIQ P6 Dtrx 64 Channel Assembly |
5252321-2 | DTRX64 II Assy |
