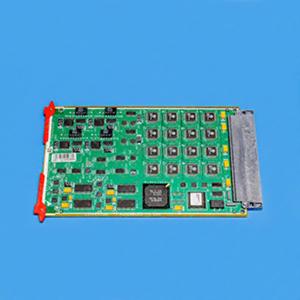

16 Slice GDAS Converter Card 2404393U

2404393U
Computed Tomography (CT)
Other Computed Tomography (CT)
GE HealthCare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Product Overview

The 16 Slice Global Data Acquisition System (GDAS) Converter Card is used in CT scanners and other medical systems. It is a printed circuit board which processes low level current signals from 128 channels of CT X-ray detector photodiode and convert them into 128 voltage/charge signals. This circuit board is comprised of a 2 GDAS ASICs, 32-bit floating point DSP, 100uA bias current circuit for the GDAS ASICs, GDAS ASIC Bridge (GAB) FPGA, CAN Transceiver, I2C serial digital output temperature sensor, bootable 16 Mbit flash memory, 128 Mbit SDRAM ICs, regulators, local ferrite beads, and digital I/O circuitry. The signal from detector output is amplified by the GDAS ASIC. The flash memory holds the necessary ASICs input offset voltage trim values, firmware version, date, time, vector table, checksum, FPGA configuration file and the converter board serial number. The on board temperature sensor (U5) monitors the board ambient temperature to ensure that the board is operating in its proper temperature range. The converter board shall not constitute a safety hazard to personnel using or maintaining the CT equipment. The product is securely packaged inside a high quality packing box to avoid physical damage during transit.
