Pl 303 Compression Node
2373563-8
Mammography
Senographe Essential
GE Healthcare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.


Product Overview

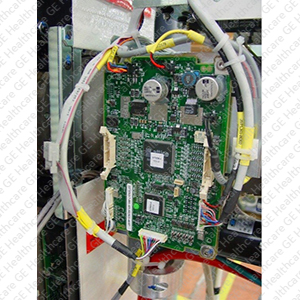

The PL 303 Compression Node is a circuit board that is used for mammography machines, Computed Tomography (CT) machines and many other Digital Imaging (DI) machines. They are mainly used in the compression of the medical diagnostic equipment in order to change the various positions of the patient. It has many components connected to the Printed Circuit Board (PCB) such as capacitors, semiconductors, resistors, programmable logic devices, Light Emitting Diode (LED), filters, switches and drivers. Spacers are used at certain points to have even spaces between the components so they will not touch the components. All are connected by soldering and Room Temperature Vulcanizing (RTV) silicone rubber. It is ensured that the display face will not have any RTV rubber and other dirt after the insertion and soldering is complete. Testing of the compression node is done with the help of a PC with specific software and hardware, as it cannot be self-tested. The Printed Wiring Assembly (PWA) will meet the requirements as per the standard specification and has to be handled in a manner to prevent Electro Static Discharge (ESD) damage. The product is free from dust, burrs, sharp edges, surface blemishes, sink marks and flash marks. It is packaged with a label, containing relevant information about the product, a label with the shipment details, and placed in a carton box with a Quality Assurance (QA) seal. It is widely being used in machines like Seno Care, Seno Essential, 1.5T Signa Explorer Fixed, Powerware UPS 2 KVA, Icad Total Look Mammo Advantage and Optima IGS 320, among others.

Compatible Products

Senographe Essential

Senographe Essential

Senographe Essential E

Senographe Essential E
