Position Sensor Cable Assembly
| 2337044 | |
| X-Ray | |
| Revolution XRD | |
| GE HealthCare | |
Add to Wish List
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Product Overview

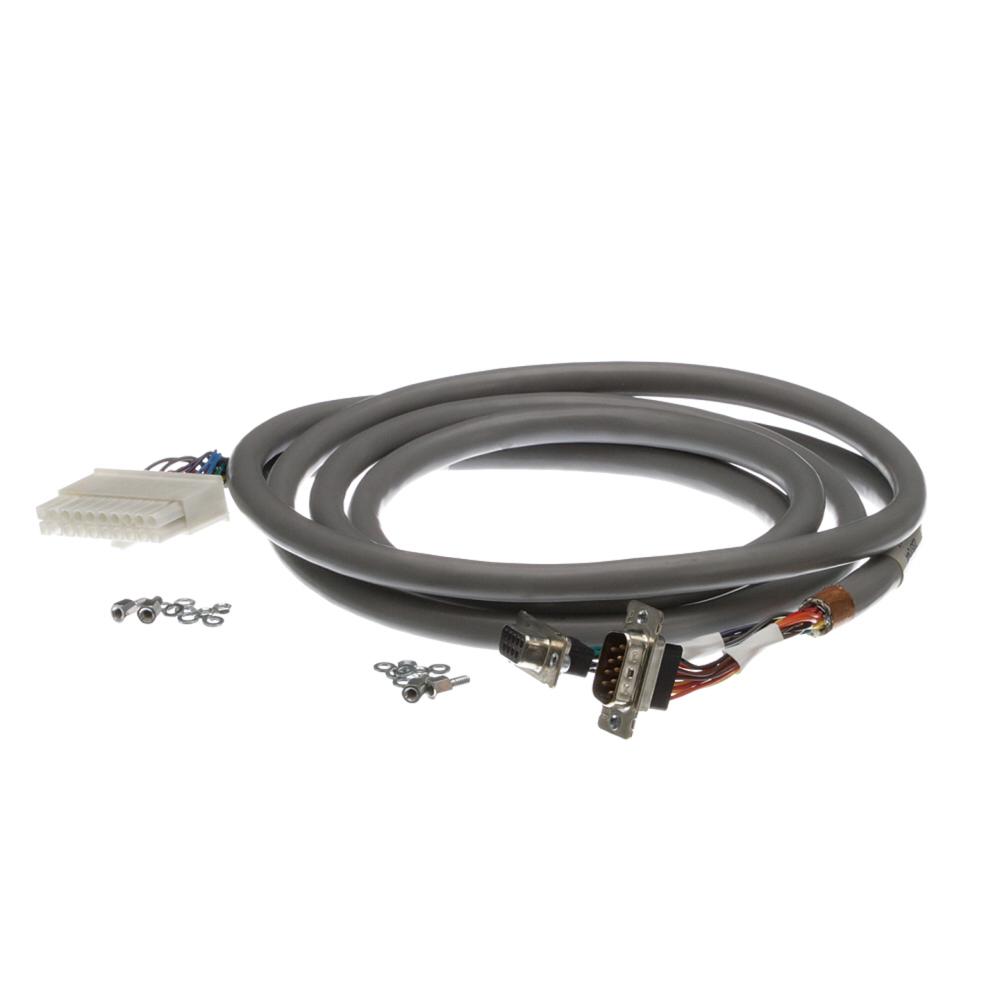

This Position Sensor cable harness assembly is used in the Thunder Table assembly. The harness comprises of high quality 9 pair 24 AWG, UL standard cable, a 20 position Mate-N-Lock connector at the Table Interface Board side and 2 X SUB-D connectors at the other end. The cable harness splits into two 60mm long connector cables at the TOP connection end. The provided SUB-D connectors at the TOP side are of opposite genders which simplifies & fool proof the the connection procedure during installations. The 20 Pin connector is a free hanging connector with a Latch lock while the SUB-D connectors are fixed using the provided hex head 6.35mm long threaded machine screws. This cable assembly is designed to establish connection between TIFB & TOP. For easy identification, the cable harness comes with labelling information stating the correct sides of connections. This part is RoHS Compliant and can be used in the Thunder Table Assembly which is used with GE's Definium 8000 & Revolution XRd systems.
