Extension Cable, ECG Vivid I to Mac LabCath Lab, 600mm
| 2032673-001 | |
| Cardiology | |
| Other Diagnostic ECG | |
| GE HealthCare | |
Add to Wish List
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Product Overview

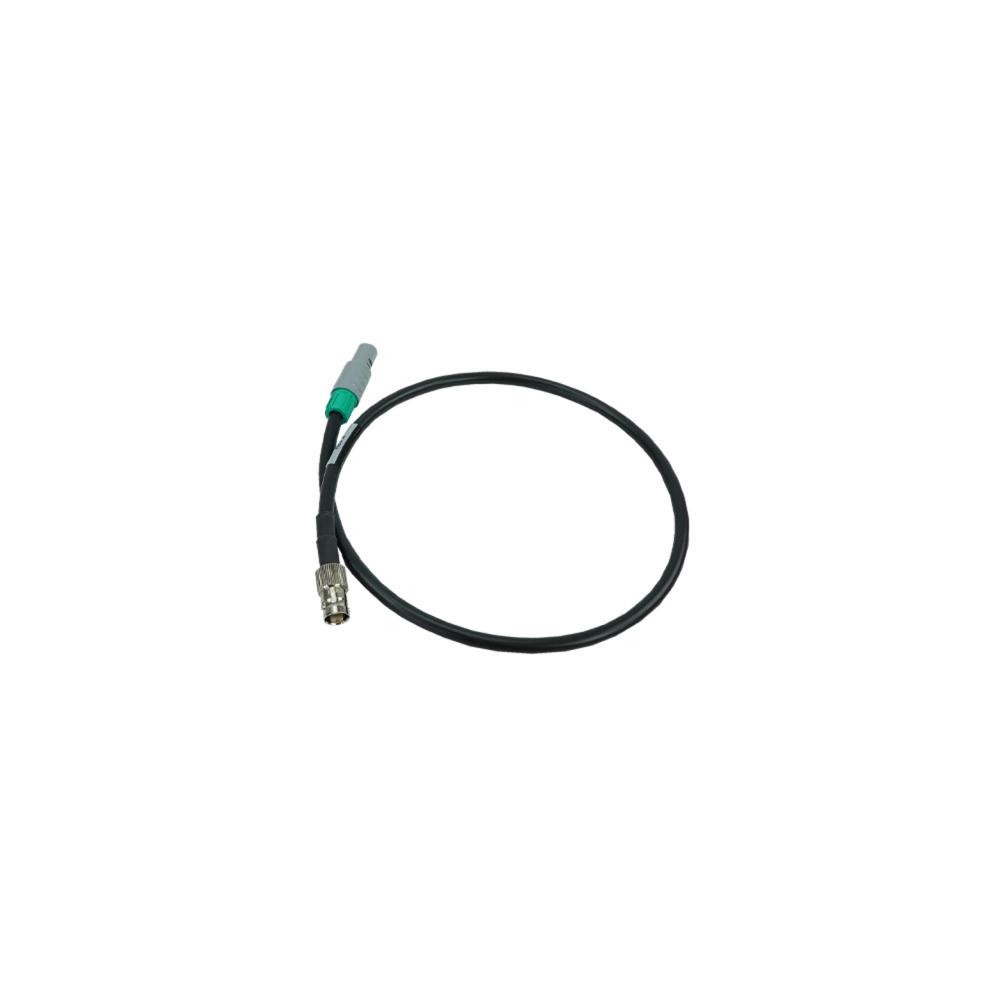

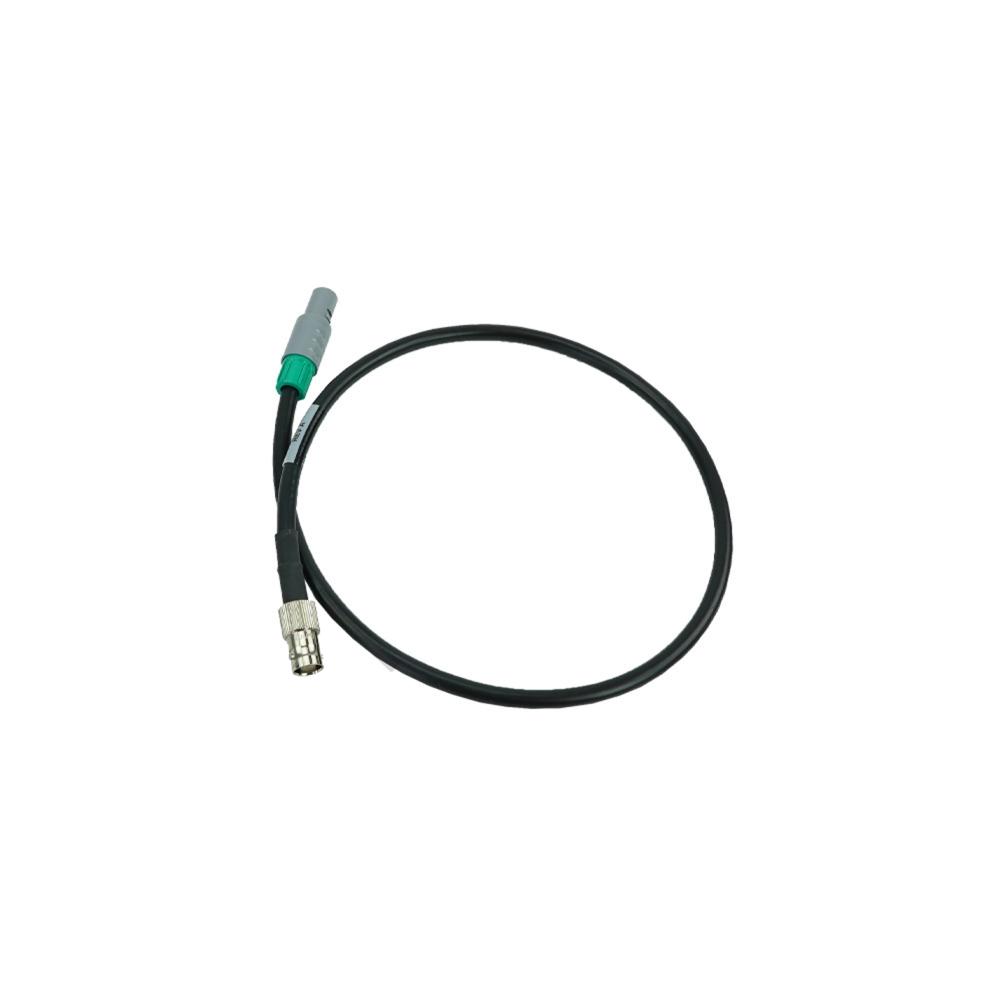

This 600 mm long extension cable assembly is connected in the Vivid I to Mac Lab/Cath Lab systems of GE's Diagnostic ECG Systems. This cable assembly comprises of a 50 Ohms female coaxial connector at one end and a 7 position circular push-pull connector at the other end, connected using 22 AWG, stranded bare copper conductor cable. This connector cable can be operated at up to 1 GHz frequency at a temperature range of +165 to -65 Degree C. The contacts of this cable assembly are of brass with gold plating which offers excellent conductivity, heat protection, enhance durability and the nickel body finish offers exceptional corrosion protection. The cable assembly is properly shielded using bare copper braid shield which provides EMI/RFI shielding and insulated using gas-injected high-density polyethylene (HDPE) foam and polyvinyl jacket to resists electrical leakage and also protects the cable against environmental threats such as water and heat. This cable assembly comes with pre-labeled information about the part number, manufacturer and maufacturing date.
