Assembly VID/MUX for IEB RoHS
2003681-004
2003681-003
Cardiology
Invasive Cardiology
GE Healthcare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Product Overview

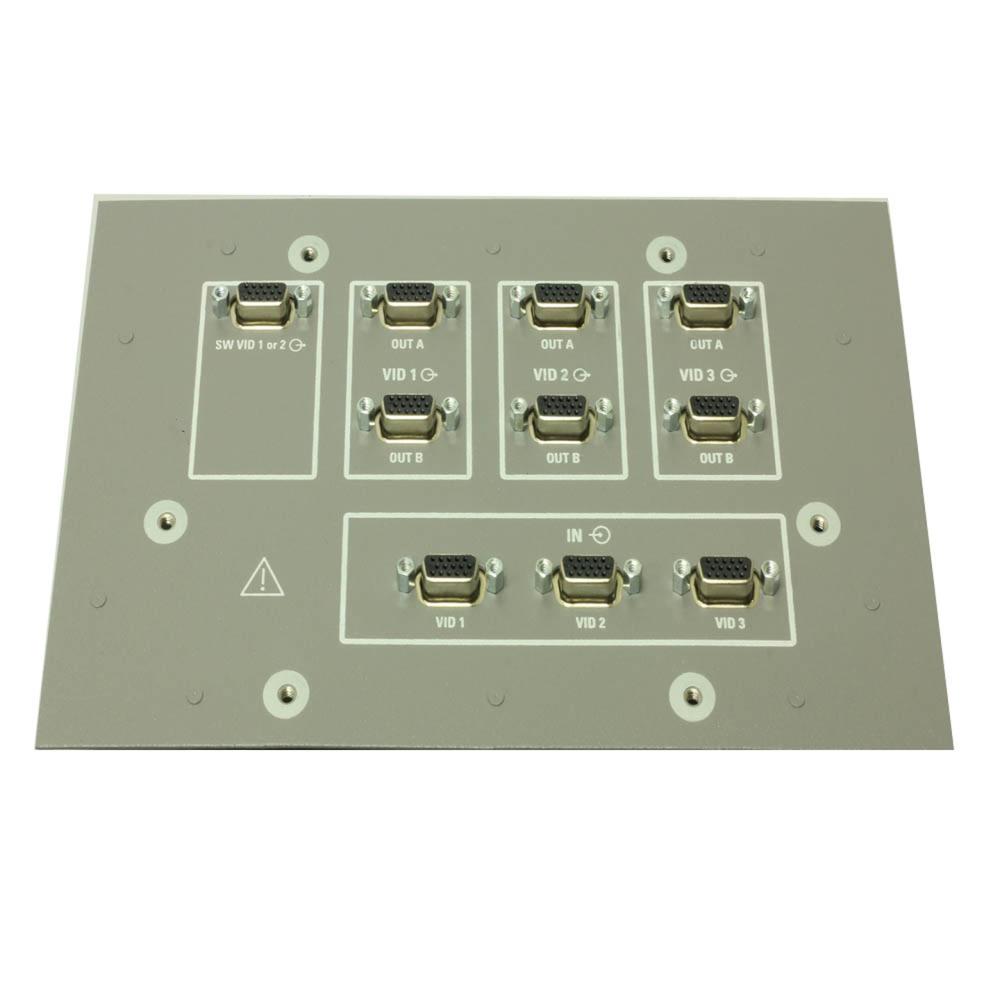

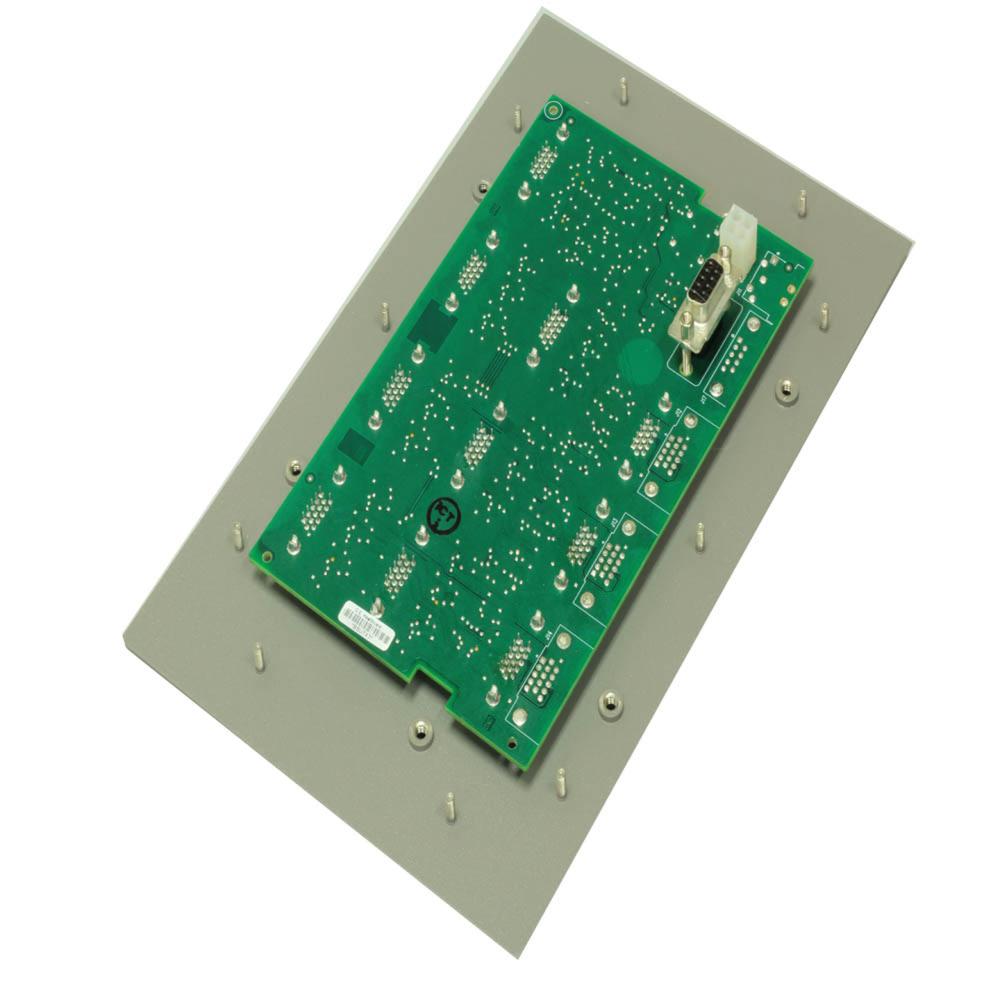

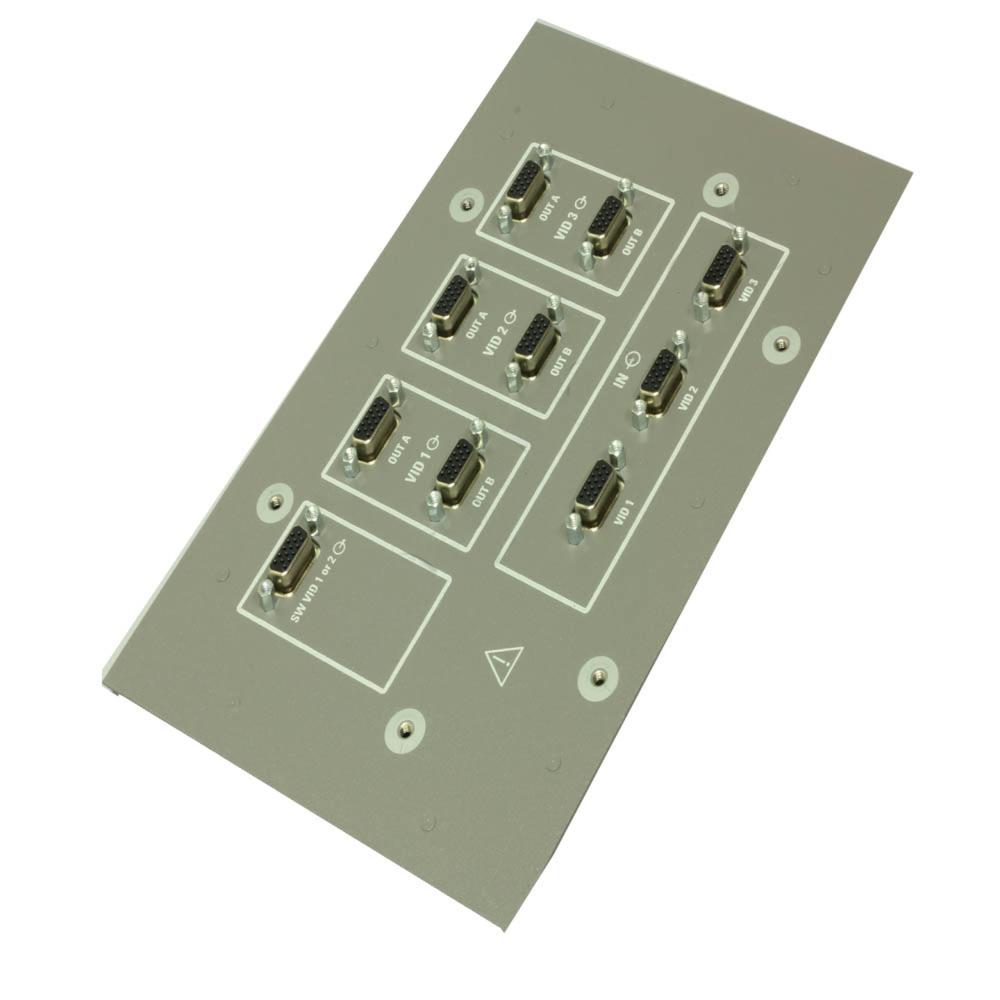

The VID/MUX Assembly consists of Video Multiplexer (VID/MUX) board. It is used in conjunction with the Integrated Electronics Box (IEB) intended to operate in the surgical procedure room. The main purpose of the board is to buffer and switch the three possible video signals for computer monitors. The board has the capability simultaneous signals from three sources: Video 1, Video 2, and Video 3. The VID/MUX box buffers each of these three video signals to two separate outputs, generally called the “remote” and “local” outputs. The local outputs are used for monitors in an actual lab. The final video output on the board is the “Switched Video” output. This output is switched between the signal inputs. The system operates from a power supply with the voltage levels between +5 V and -5 V. The video output drivers on the board are capable of transmitting a video signal through up to 100 feet of shielded video cable. It operates properly under an ambient temperature range from 0˚ C to 35˚ C, non-condensing.

Equivalent Part :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
2003681-003 The Assembly VID/MUX for IEb is used in Power box, IEB, W/VI
