1011-3429-000 | |
Anesthesia Delivery | |
Aisys | |
GE Healthcare | |
Enter your approval number and submit to add item(s) to cart.
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Select your approver's name and submit to add item(s) to your cart
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Product Overview

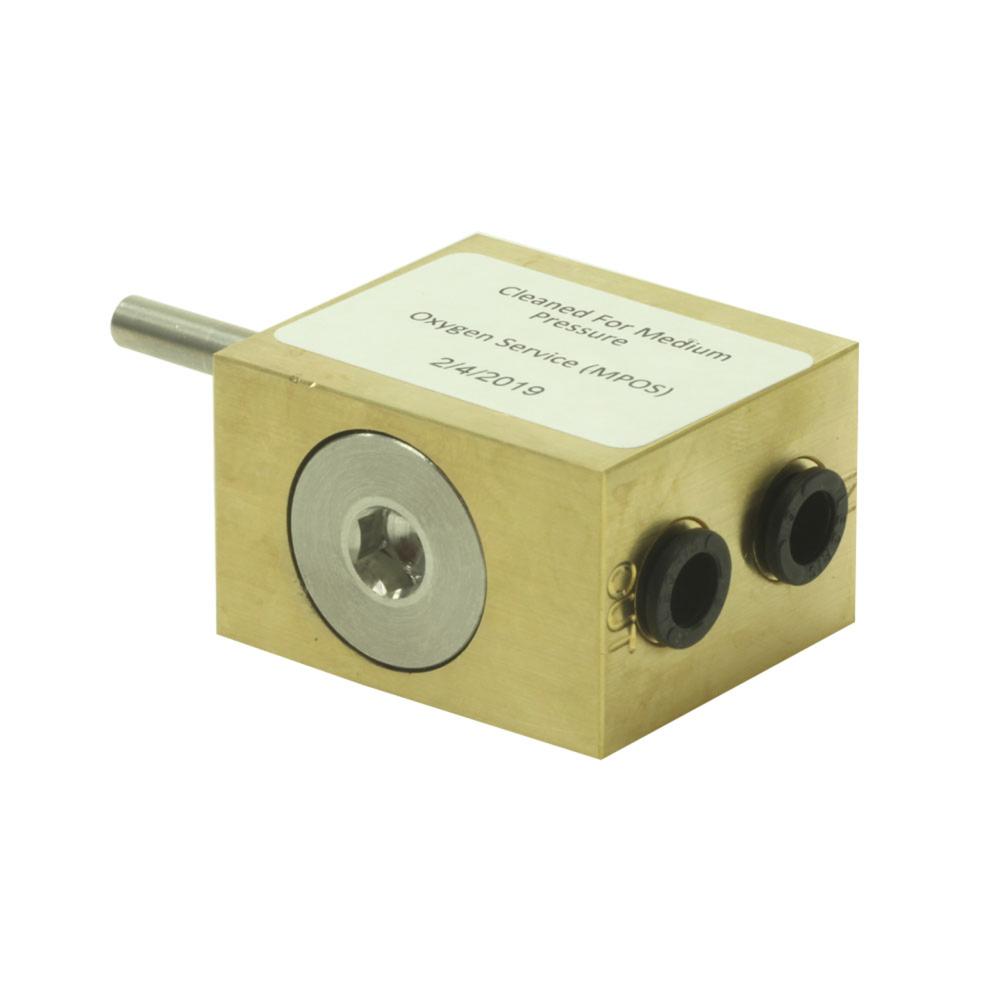

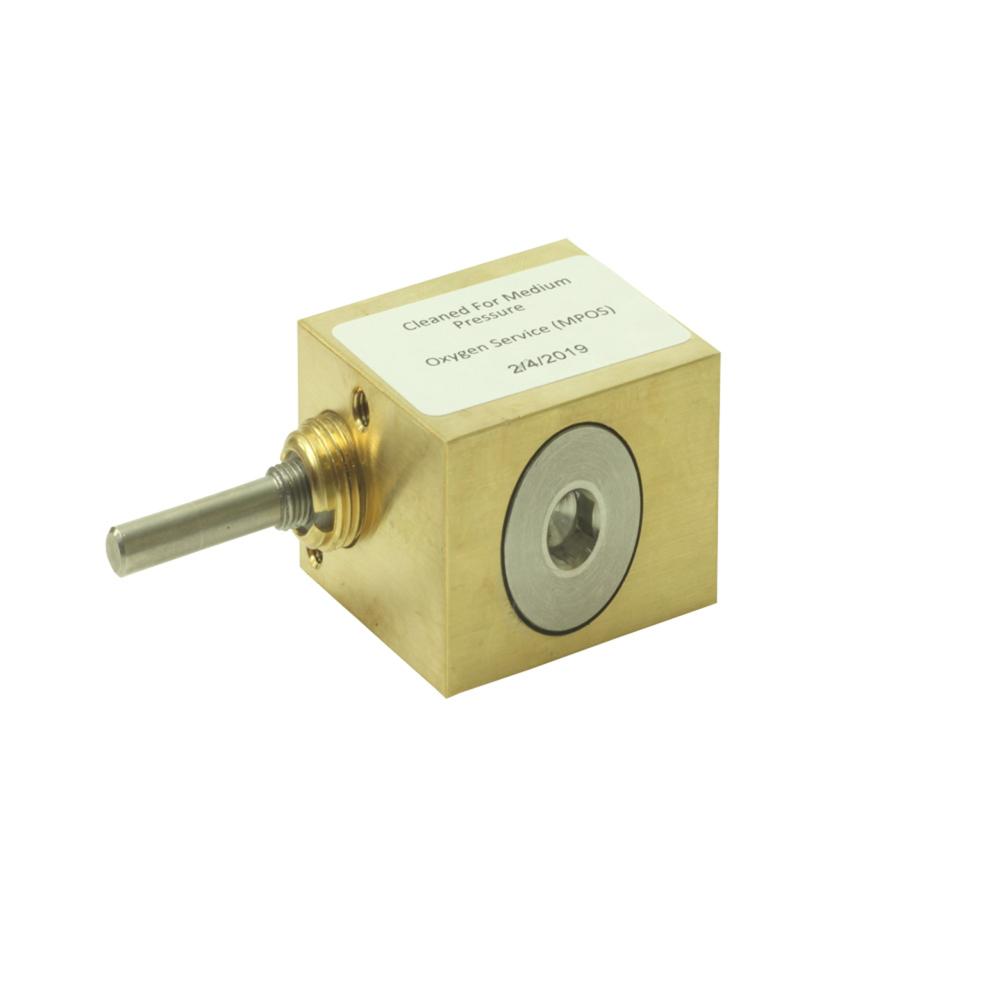

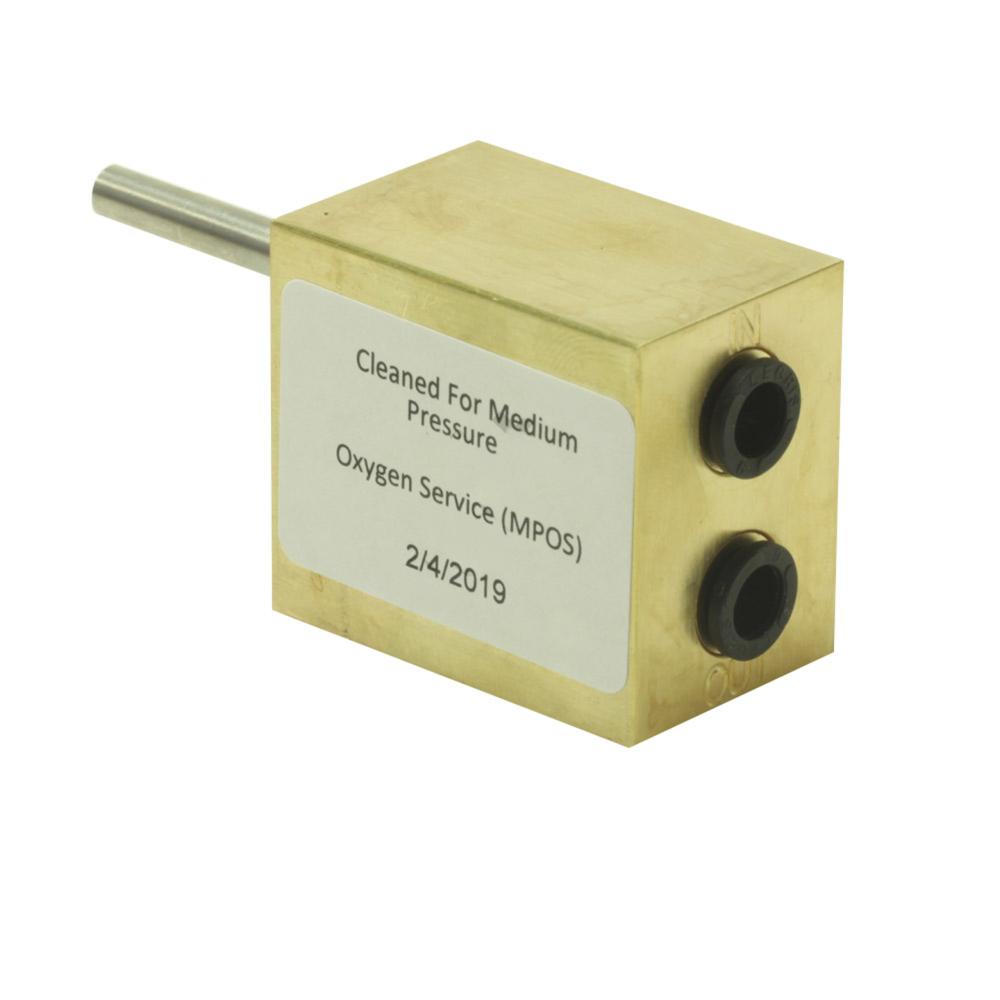

The Flow Control Valve comes as a part of the Alternate Oxygen manifold in Breathing Circuit Gas (BCG) of an anesthesia delivery system. It is used to control the oxygen gas flow through the Medium Pressure Oxygen Service (MPOS) manifold where, pressure is in the range of 50 to 3000 kPa and which, is provided as a part of the unit. The assembly comes into contact with oxygen-enriched gas, a mixture that contains more than 23.5% volume fraction of oxygen. The components are corrosion resistant, despite these conditions and hence it is highly efficient to use in medical environments. The valve consists of a shaft. The clockwise rotation of the flow control shaft reduces the flow. When the shaft is at the minimum stop, the flow from the outlet port is 510-685 mL/min and at the maximum stop, flow is 11.0-12.75 L/min. In and Out ports are permanently identified in position and orientation.
