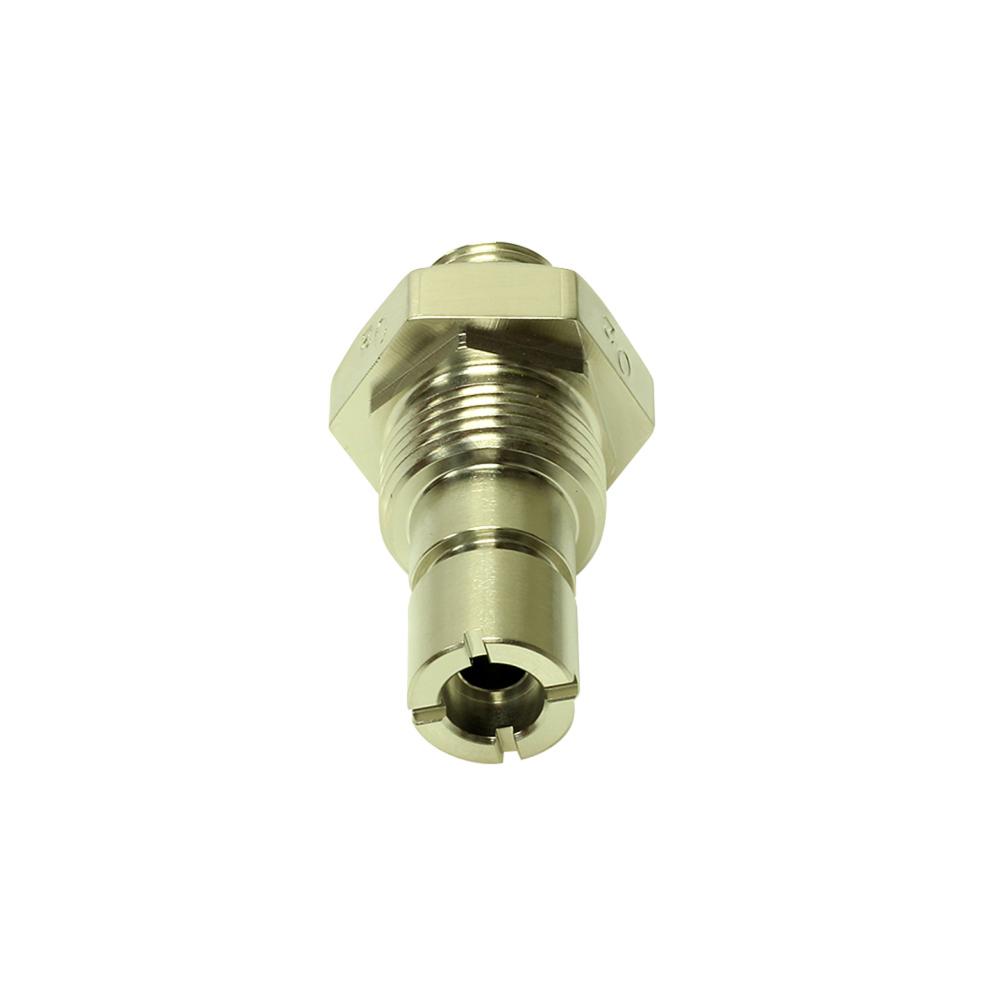

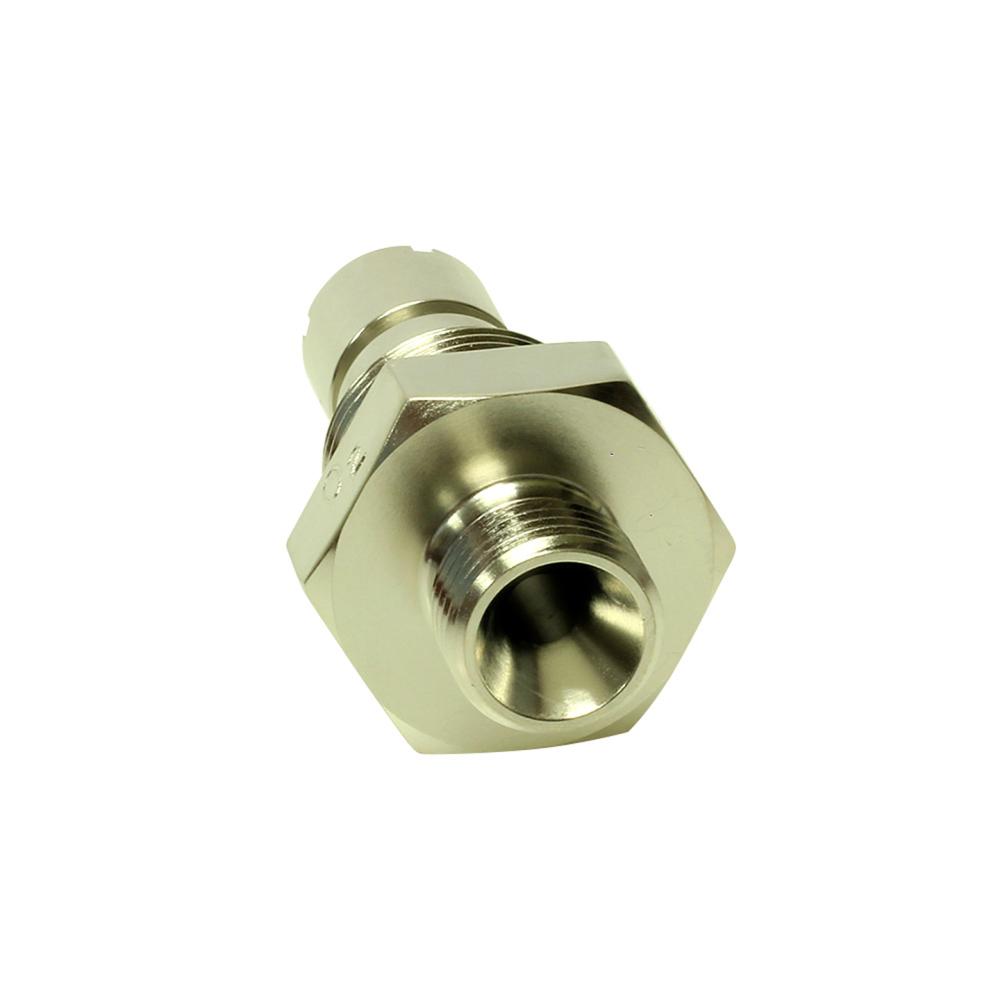

Pipeline Body O₂ DISS Manifold and Panel Mount MPOS
1006-5149-000 | |
Anesthesia Delivery | |
Aespire | |
GE HealthCare | |
Enter your approval number and submit to add item(s) to cart.
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Select your approver's name and submit to add item(s) to your cart
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Product Overview
The Pipeline Inlet Fittings are used in the oxygen (O₂) supply system for anesthesia delivery. This inlet is connected with Diameter Index Safety System (DISS) for medical gases. This is a non-interchangeable threaded fitting or non-interchangeable screw threaded (NIST). This in turn connected with a metal filter, check valve and an O-ring. The DISS is a gas station outlet system used in supply medical gas. It is threaded at one end and have different diameter for each type of supply to avoid wrong connection. These pipeline inlets located near the yoke blocks for cylinders. Generally, oxygen supply cylinder and pipeline are green colored for easy identification. The uni-directional check valve is located downstream from the pipeline inlet, it prevents reverse flow of gas or air from the machine into the piping system. Each inlet is fitted with filter with a pore size of 100µm or less. The O-ring used for the check valve should be lubricated with Krytox. The material 360 brass provides corrosion resistance and better machinability. B16 brass has a thin protective layer which protects the surface from getting corroded when exposed to the atmosphere. It is a high density material.
